Torq Wrench - Wi-Click Mechanical Torque Wrench

Torq Wrench

Wi-Click Mechanical Torque Wrench

Introduction video

INNOVATIVE

WI-CLICK

MECHANICAL TORQUE WRENCH
WITH DIGITAL READOUT

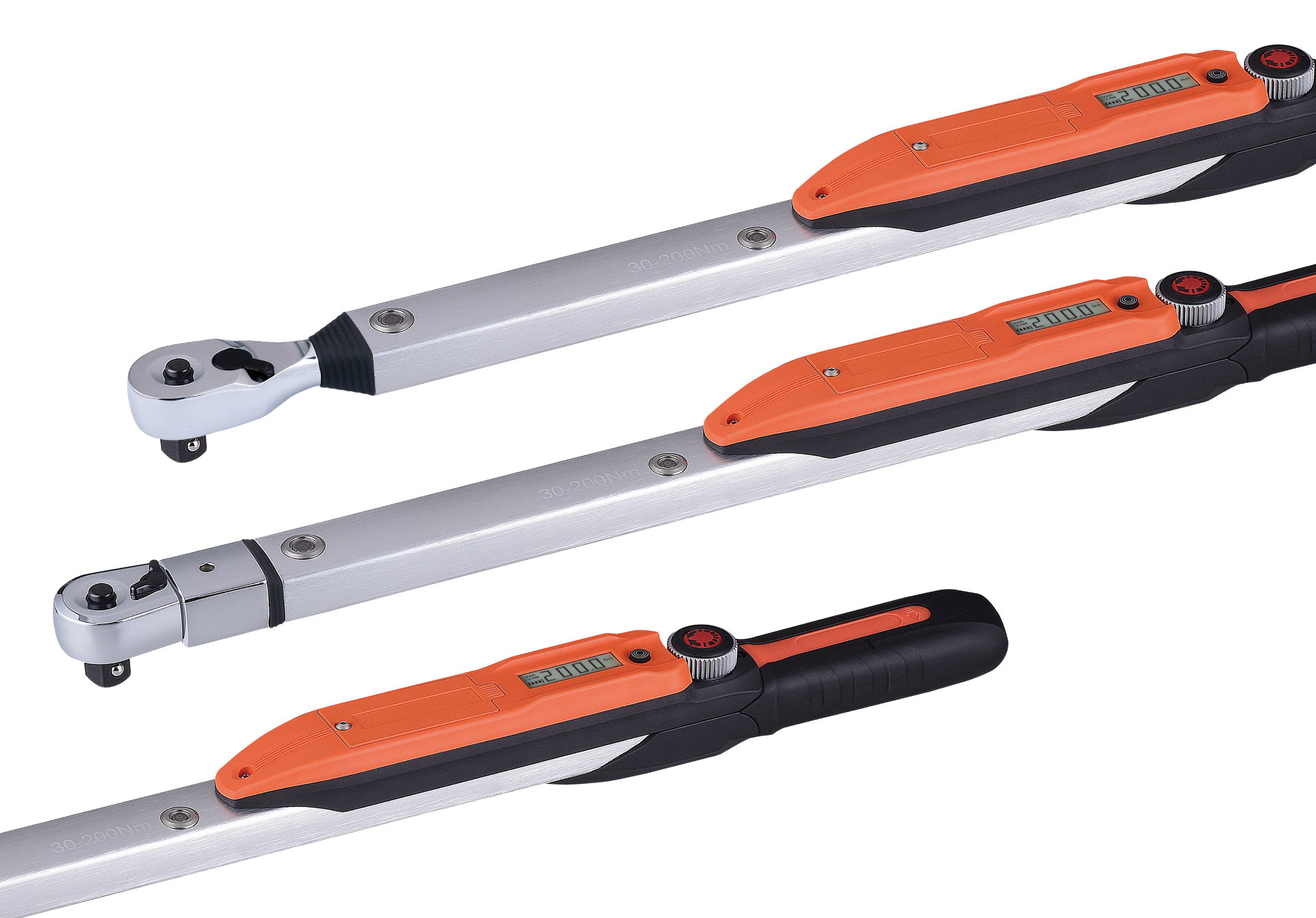

This remarkable tool combines the best features of both mechanical and digital torque wrenches. Setting of desired torque is quickly and accurately made through the dial and LCD display. Over-torquing is prevented by the large buffer stroke after the preset torque is reached, along with a loud audible click to notify the user.

With extra length and a lightweight construction, the tool delivers ease of use and greater leverage, combined with a tolerance of ±3% and 0.1, 0.2 and 0.5 Nm per graduation fine setting respectively for 1/4”, 3/8”, and 1/2” Dr. along with quick setting feature to make this torque wrench outstanding in the market.

Quick adjustment

Setting of desired torque is quickly and accurately made through the dial and LCD display.

1

To set the torque, first release the lever.

2

Easily and quickly set the required torque via the dial knob.

3

Lock the lever when the desired torque has been set.

Product Feature

Maximum cycle calibration notification

Conveniently located power button

Quick adjustment knob

1

2

4

5

3

Powered by two "AAA" batteries

Torque and unit setting display

6

Locking lever for torque setting

1. Powered by two "AAA" batteries
2. Maximum cycle calibration notification
3. Torque and unit setting display
4. Conveniently located power button
5. Quick adjustment knob
6. Locking lever for torque setting

Digital torque setting provides fine setting 0.1, 0.2 and 0.5 Nm per graduation respectively for 1/4”, 3/8” and 1/2” Dr., as opposed to 1 Nm per graduation in standard mechanical torque setting.

Notification on panel notifies user current cycle count, making easier to track and plan calibration.

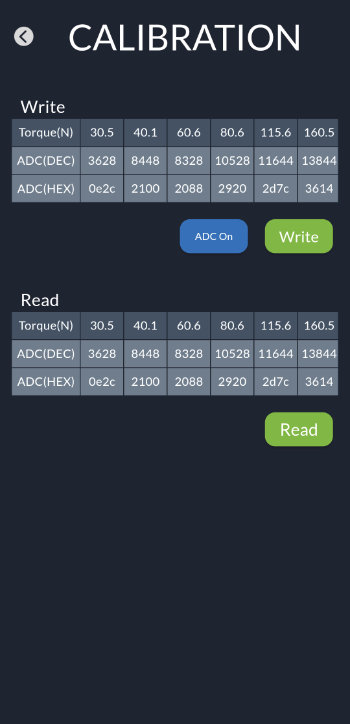

Calibration through App using wireless communication

(by authorized agents only)

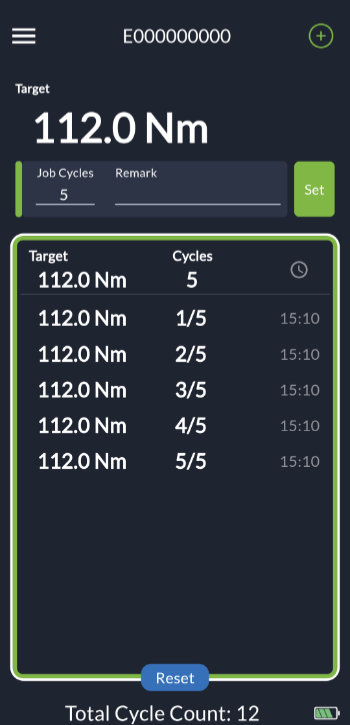

Wireless communication to record the number of times the set torque is reached (for QC purposes).

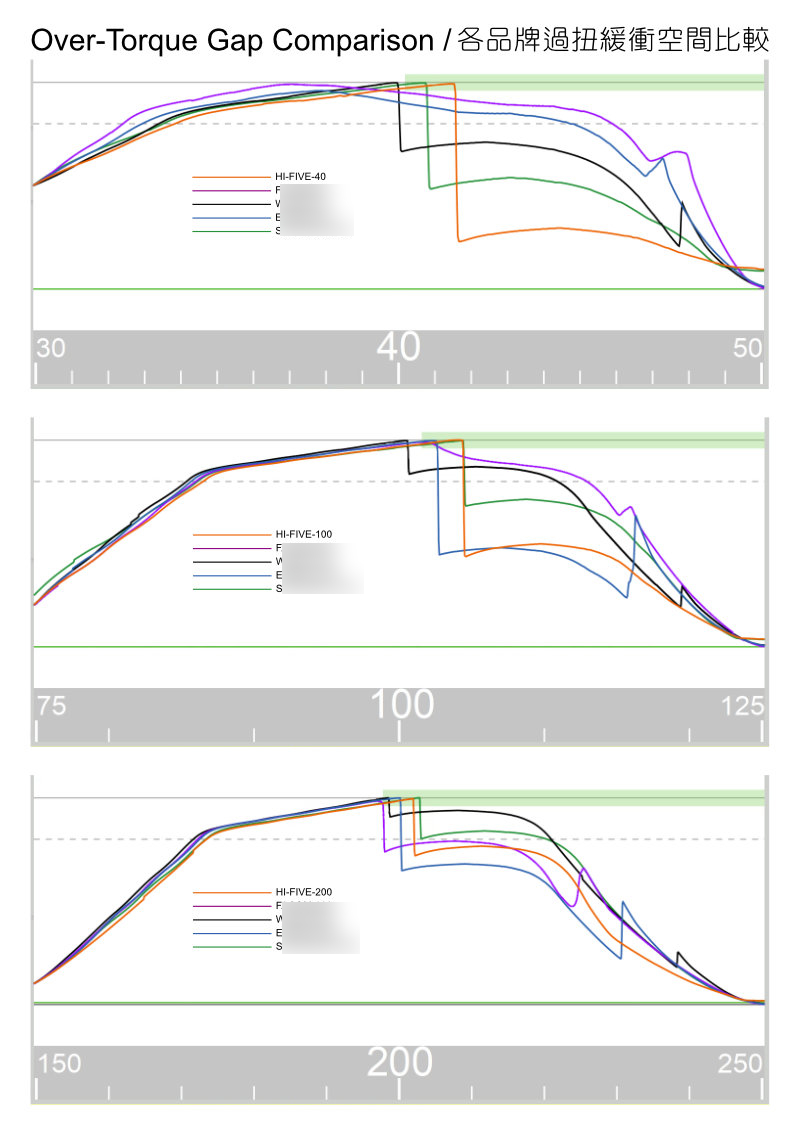

Large stroke angle after tripping
large structural buffer space
helps prevent over torque.

Coil spring-free design combined with digital controller provides a novel and simplified method of calibration.

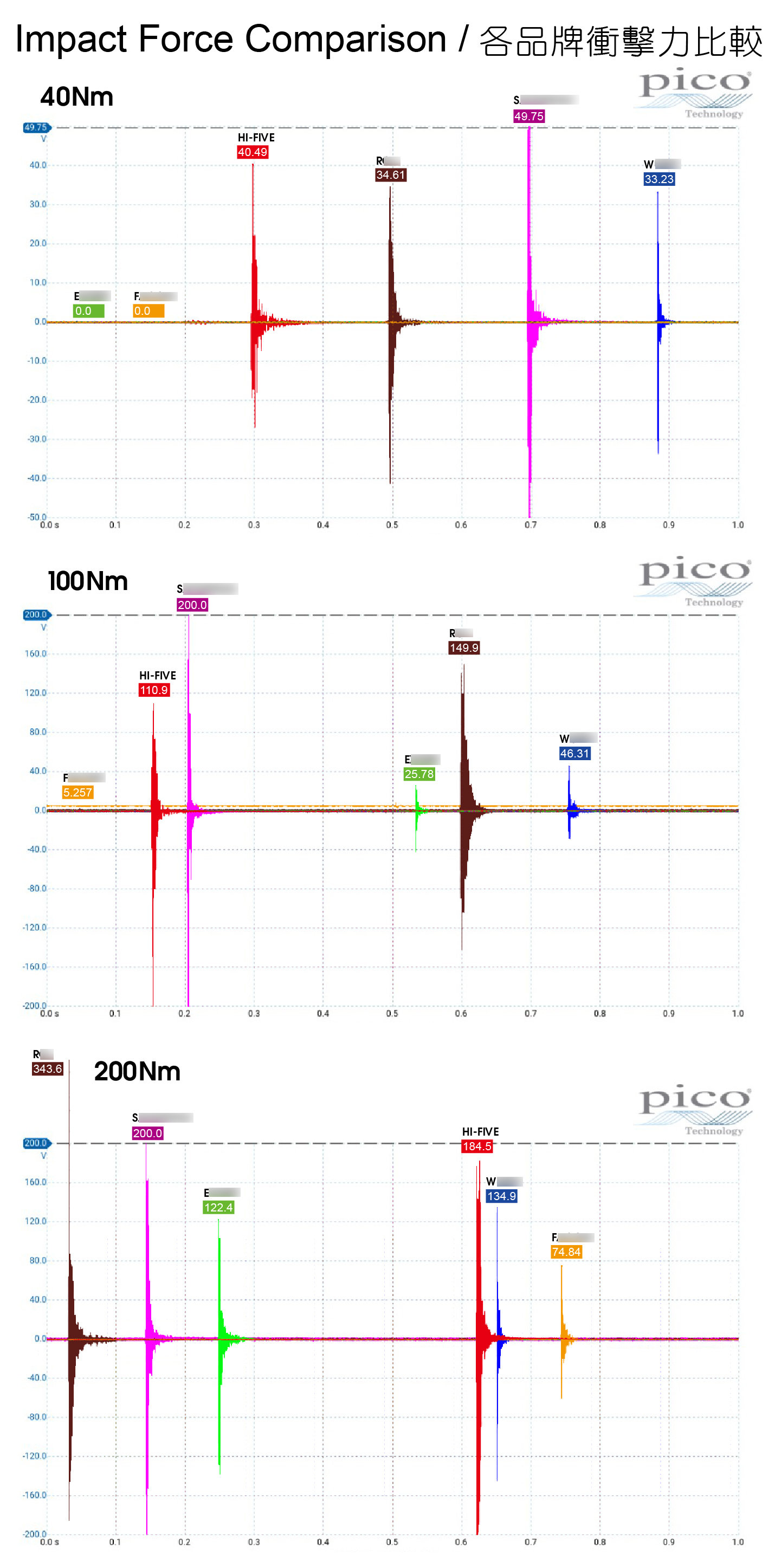

Loud mechanical click sound informs the user more clearly that the desired torque has been reached.

Easily actuated direction change

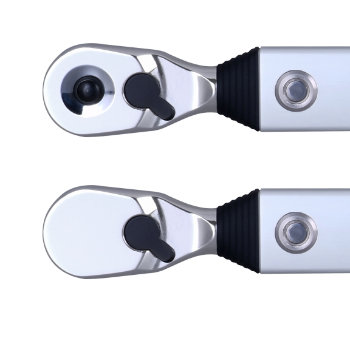

Patented removable head with locking function

1.45KG

Lightweight aluminum alloy outer tube,
can be customized with different anodized surface treatment colors.

The ½ inch models are longer and lighter than comparable models (total length 585mm, weight including head 1.45kg for ½" Dr.) making the tool easier to use with greater leverage.

Specifications

Square Drive	Size	Torque Range	Graduation	Length (mm)	Gear Tooth	Tolerance(CW)
¼" Dr	9x12	6~30Nm	0.1Nm	361	72	≥15Nm:±3%,<15Nm:±4%
⅜" Dr	14x18	20~100Nm	0.2Nm	483	72	±3%
½" Dr	14x18	40~200Nm	0.5Nm	585	72	±3%
